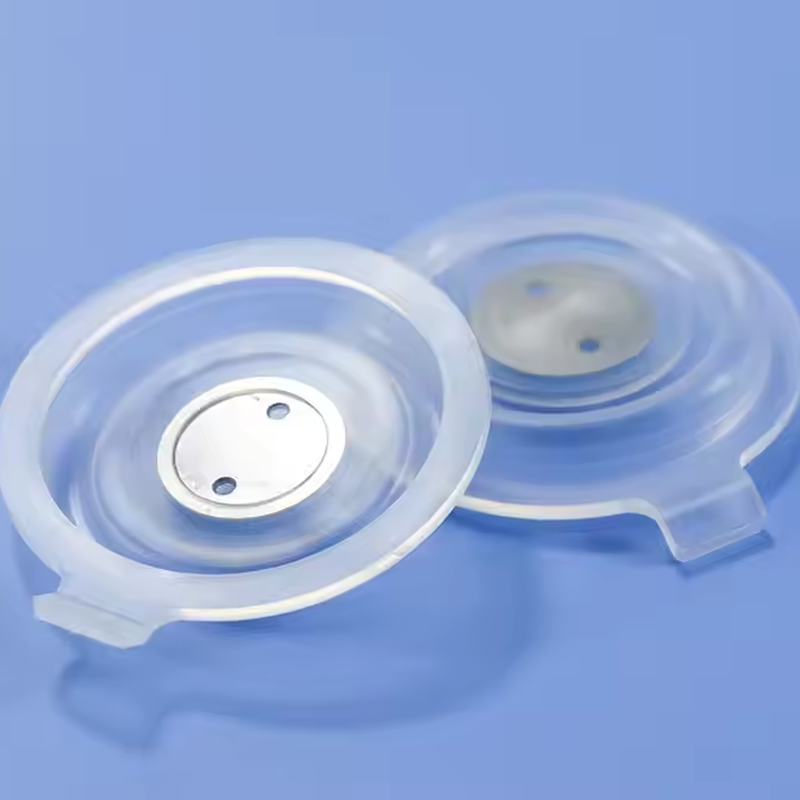

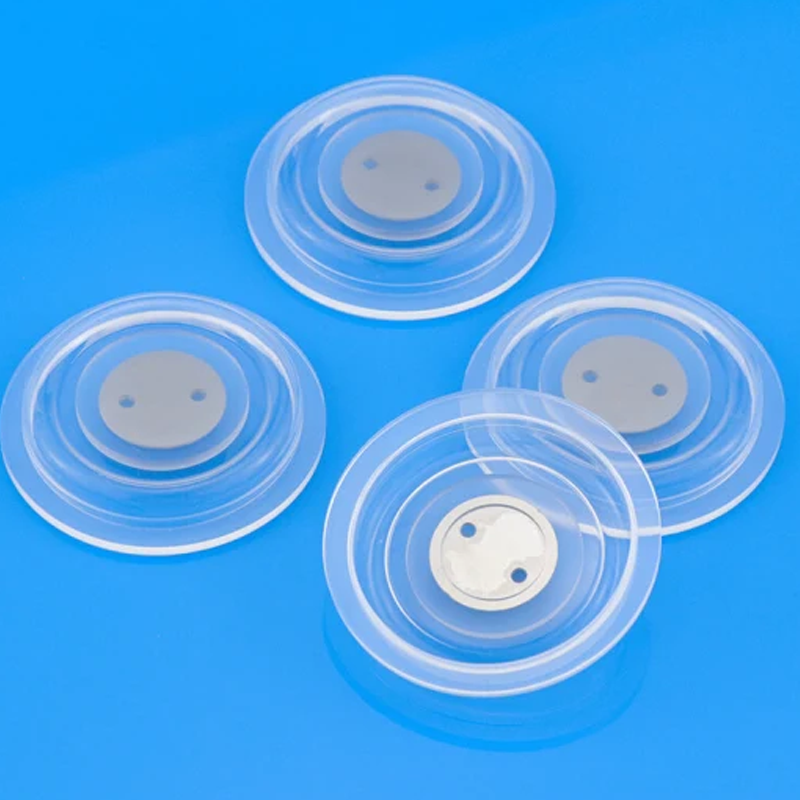

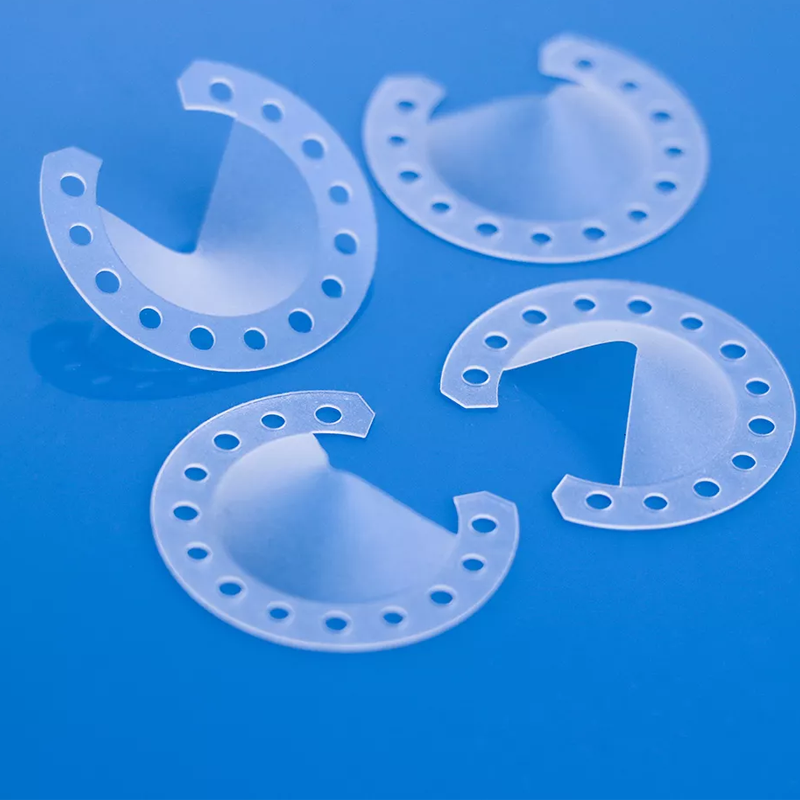

Medical Grade Membrane Gasket

Overview:

A medical-grade membrane gasket, often referred to as a membrane seal, membrane valve, or diaphragm valve, serves the critical function of separating two fluids or gases with minimal motion or pressure differential. Dynamic diaphragms transmit force or pressure while providing a seal between fixed and moving components. These gaskets are commonly employed in metering fuels, liquids, and gases within control systems for both residential and industrial heating applications.

Medical-grade membrane gaskets can be constructed from solid rubber or reinforced with metal supports, ensuring enhanced durability and reliability. They are typically produced through compression molding or over-molding techniques, allowing for precise fabrication to meet stringent industry standards.

Features:

Manufacturing Process:

1. Material Selection:

The process begins with selecting high-quality materials suitable for medical applications, such as medical-grade silicone, rubber, or thermoplastics. These materials are chosen for their biocompatibility, chemical resistance, and mechanical properties.

2. Design and Prototyping:

Engineers and designers collaborate to create detailed specifications and designs for the membrane gasket. Advanced CAD software is often used to develop prototypes, allowing for simulations and adjustments before proceeding to production.

3. Tooling Development:

Precision tooling, including molds and dies, is crafted in-house. This stage is crucial for achieving the exact dimensions and shapes required for the gaskets. High-precision CNC machines are utilized to ensure accuracy and repeatability.

4. Molding Process:

Depending on the design, the gaskets are manufactured using techniques such as compression molding, transfer molding, or over-molding. These processes involve heating the selected materials and shaping them into the desired form using the prepared molds.

5. Curing:

After molding, the gaskets undergo a curing process, typically involving heat and pressure to enhance the material properties and ensure the gaskets achieve their final strength and durability.

6. Quality Control and Testing:

Rigorous quality control measures are implemented at each stage of production. This includes dimensional inspections, material analysis, and performance testing to verify that each gasket meets medical industry standards and regulatory requirements.

7. Surface Treatment:

If necessary, the gaskets may undergo surface treatments to enhance properties such as adhesion, corrosion resistance, or aesthetics. This can include processes like plasma treatment or surface coatings.

8. Packaging and Sterilization:

Once manufacturing is complete, the gaskets are carefully packaged to protect them from contamination during transportation and storage. Sterilization processes may be applied to ensure the gaskets are safe for medical use.

Advantages of Our Products:

1. Instantaneous Positive Seal: Ensures reliable sealing upon contact, providing immediate containment.
2. Position Independence: Functions effectively regardless of installation orientation, enhancing versatility.
3. Adjustable Opening Pressure: Allows for customizable sealing performance through variations in seat thickness.
4. High Flow Rate Relative to Size: Achieves optimal fluid dynamics while minimizing package dimensions.
5. Corrosion Resistance: Designed to withstand harsh environments and chemicals, ensuring longevity.
6. Wear Resistance: Engineered to endure frequent use, maintaining performance and integrity over time.

Why Choose Us?

• Expert Precision Mold-Making Technology: Leveraging extensive experience since 1998 to deliver high-quality molds.
• Cost-Effective Solutions:As an original manufacturer, we provide competitive pricing without compromising quality.
• Skilled Design Team:Our five experienced designers offer comprehensive support in technology, production, design, and artwork.
• ISO 9001 Compliance:All production and testing processes are conducted in strict adherence to ISO 9001 standards to ensure quality and reliability.
• Fully Equipped Production Facility:We maintain a complete production plant with advanced equipment and a controlled environment to optimize manufacturing efficiency.
