In the realm of manufacturing, injection molding is a prominent technique utilized for producing a wide variety of components from materials such as thermoplastics and thermosets. Among the thermosetting options, Liquid Silicone Rubber (LSR) has risen to prominence due to its efficiency, cost-effectiveness, and distinctive properties. The LSR injection molding process converts uncured liquid silicone into robust, flexible parts, making it particularly suitable for applications like gaskets, kitchen utensils, and over-molded products.
This guide will explore the complexities of LSR injection molding, detailing processing equipment, operational principles, applications, and benefits. Whether you are contemplating the production of silicone products or investigating the advantages of LSR technology, this guide offers essential information.
Understanding Liquid Silicone Rubber

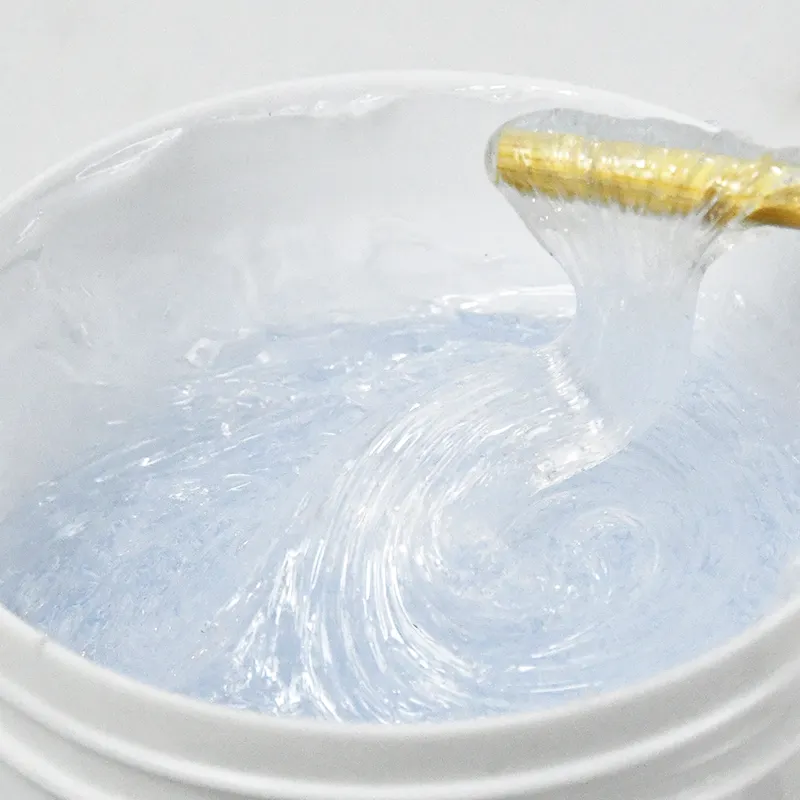

Liquid Silicone Rubber is a high-purity, platinum-cured silicone known for its exceptional fluidity and adaptability. Its molecular structure comprises alternating silicon and oxygen atoms with methyl or vinyl side groups, conferring outstanding hydrophobic characteristics that make it ideal for applications requiring electrical insulation.
Key Characteristics of LSR:
– Odorless and Tasteless: Safe for food-grade applications and infant products.
– Superior Mechanical Properties: High elongation, tensile strength, and flexibility.
– Exceptional Durability: Resistant to extreme temperatures and environmental factors.
– Chemical Resistance: Tolerant to water, oxidation, and a variety of chemical agents.
– Temperature Stability: Maintains its properties in a range from -60°C to 250°C.
– Biocompatibility: Safe for human interaction and resistant to bacterial growth.
– Electrical Insulation: Outperforms traditional insulating materials.
– Customizable Transparency and Color: Easily pigmented for tailored designs.
What Is LSR Injection Molding?
LSR injection molding, also referred to as Liquid Injection Molding (LIM), is a thermosetting process designed for the mass production of flexible, durable, and precisely engineered silicone parts. The process involves combining two components—a silicone base and a platinum catalyst—then injecting the resulting mixture into a heated mold for curing.
Key Stages in LSR Injection Molding:
- Mold Creation: Fabrication of a precise mold utilizing CNC machining techniques.
- Material Preparation: Mixing the silicone base and catalyst in a 1:1 ratio, with optional pigments for color.
- Material Injection: High-pressure injection of the mixture into the mold cavity.
- Curing: Heating the filled mold to solidify the silicone material.
- Cooling and Demolding: Removing the finished product from the mold once cooled.
- Secondary Operations: Additional processes such as trimming or assembly as required.
Benefits of LSR Injection Molding
The advantages of LSR injection molding make it a premier choice for manufacturing precision silicone components:
– Durability: Exceptional resistance to UV radiation and ozone, ideal for demanding environments.
– High-Precision Manufacturing: Capable of producing complex designs with tight tolerances.
– Minimized Flash: Low viscosity reduces flash formation, enhancing production efficiency.
– Automated Manufacturing: Increases reliability and diminishes human error.
– Consistent Product Quality: Ensures uniformity and reliability across all parts.
– High-Volume Production: Efficiently creates complex components in large quantities.
– Reduced Waste: Environmentally friendly process with minimal material waste.
– Enhanced Safety: Automation reduces operator interaction with the molds, improving safety.
Essential Equipment for LSR Injection Molding
The primary components of an LSR injection molding machine include:
– Injection Unit: Pressurizes the liquid silicone mixture for injection.
– Metering System: Ensures accurate ratios of silicone base and catalyst are maintained.
– Supply Containers: Store raw materials for the metering system.
– Mixing System: Combines materials to form a homogeneous mixture.
– Injection Nozzle: Directs the silicone into the mold cavity.
– Mold Clamping System: Secures the mold during the injection process.
LIM Silicone Molding vs. Compression Molding
While both LIM and compression molding techniques are utilized for silicone processing, they exhibit several distinctions:
– Process Differences: LIM involves injection, while compression molding relies on mechanical force to shape silicone.
– Cost Considerations: Compression molding is typically less expensive, while LIM requires more advanced technology.
– Speed and Efficiency: LIM offers quicker cycle times and greater automation capabilities.
– Versatility in Products: LIM excels in producing precise components, whereas compression molding is adaptable for various thicknesses.
– Application Differences: LIM is ideal for high-performance applications, while compression molding is suited for everyday items.
Applications of LSR Injection Molding
LSR injection molding finds applications across diverse industries, providing precision and efficiency in:
- Medical and Healthcare: Manufacturing biocompatible medical devices, including seals, gaskets, and surgical instruments.
- Automotive Sector: Producing components such as seals and gaskets designed to withstand extreme conditions.
- Kitchenware: Creating durable and flexible kitchen items, like utensils and bakeware.
- Electronics: Formulating keypads, connectors, and gaskets requiring superior insulation properties.
- Consumer Goods: Developing everyday items, such as toys and personal care products.
Conclusion
Liquid Silicone Rubber injection molding is a versatile and efficient manufacturing technique known for producing high-quality silicone components. Its unique properties and adaptability make LSR a valuable material across various industries for creating reliable and durable products. If you are interested in leveraging LSR technology or exploring its applications further, understanding its benefits can significantly enhance your manufacturing capabilities and product offerings. Should you require customized metal parts using this process, we are here to provide you with tailored solutions to meet your specific needs.
